Description

　　MP PFGun system delivers the maximum energy produced by the solid energetic materials for to stimulate the near-wellbore.It is primarily used in perforated or open hole wells.

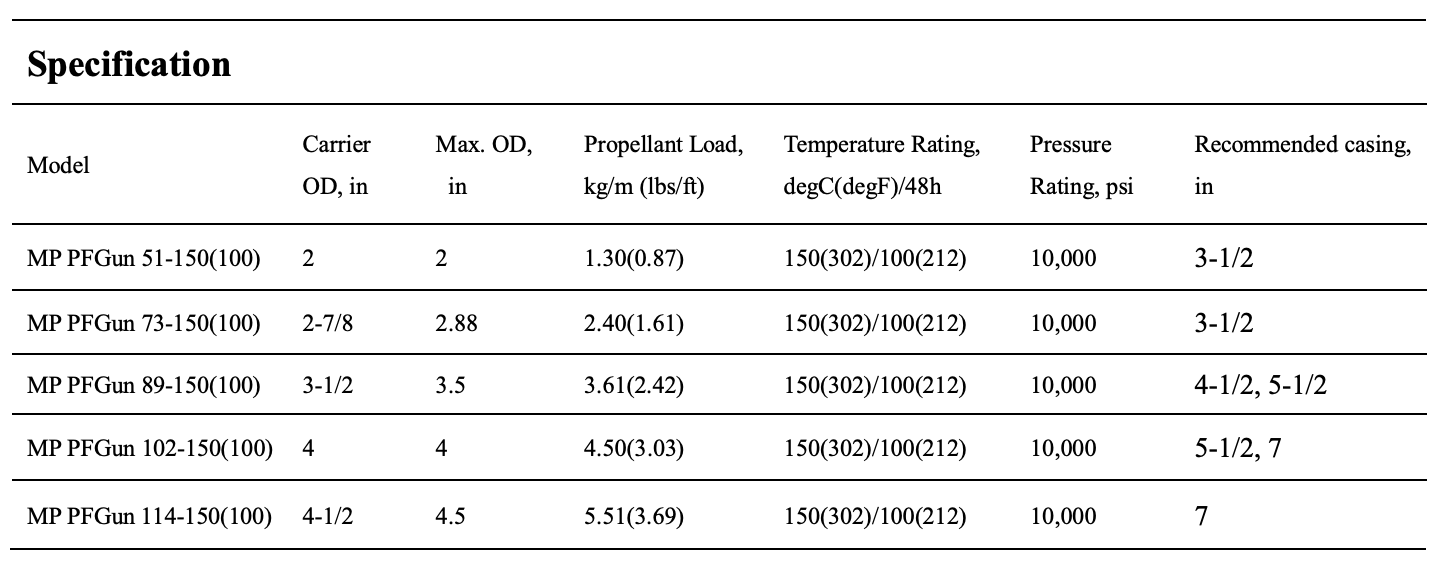

　　MP PFGun assembly has three major components-a slot steel carrier,a hollow cylinder propellant and a central ignition tubing system containing detonating cord and firing propellant.It is available in a variety of sizes including 2",2-7/8",3-1/2",4"and 4-1/2"OD,and in 1m,2 m,and 3m long,respectively.It can be conveyed via both tubing and wireline.

　　When the tool is positioned across the existing perforations,typically on tubing,the central-tube ignition system is then initiated,causing the main propellants to ignite.The propellant burns quickly and produces a burst of high-pressure gas.This high-pressure gas enters existing perforating tunnels and creates fractures across damaged zones,and therefore,an improved flow path from the formation to the wellbore.

　　Applications

　　●Horizontal well or long interval well with formation damage.

　　●Induces near wellbore fracking to increase productivity.

　　●Well stimulation for horizontal well completed with slotted liner.

　　●Scale removing for old wells,either injectors or producers.

　　Benefits,Features

　　●Stimulate long intervals.

　　●Clean fracking.

　　●Deliver maximum energy than other oilfield propellants.
